Stainless steel tile roof hook solar mounting System is a common solution for ceramic tile, asphalt tile and slate tile rooftop.
Application :
Tile roof solar mountingItem No :
LE-TR-01Material :
Al6005-T5 & SUS304Size :
CustomizedColor :
SilverOrder(MOQ) :
1 setLead Time :
Within 15 daysApplicable Module :
Framed or frameless moduleModule Orientation :
Portrait or landscapeProduct Description:
Link Solar Energy pitched solar tile roof mounting is designed with great flexibility both for commercial and residential roof solar system. It is suitable for installing framed and frameless modules flushed to the pitched roof. We have our hooks with appropriate thicknesses and various styles to ensure that they are strong enough to connect directly to roof beam under all kinds of tiles to support the solar bracket system.
Product Parameters:
|
Brand |
Link Solar Energy |
|
Material |
Al6005-T5 &SUS304 |
|
Surface Coating |
Anodized |
|
Samples |
Free samples |
|
Max. Wind Speed |
60m/s |
|
Max. Snow Load |
1.4KN/m² |
|
Warranty |
12 years |
|
Service Life |
25 years |
|
Installation site |
Tile roof |
|
Tilt angle |
The same as the roof |
|
Shipping port |
Xiamen, China |
|
Payment |
TT/LC |
Features:
1. Simple structure, easy installation, save time and cost.
2. Corrosion resistant aluminum and stainless steel components.
3. Application for different tile roofs, many roof hooks for choose.
4. Designed for residential and commercial applications.
Components List:
 |
 |
 |

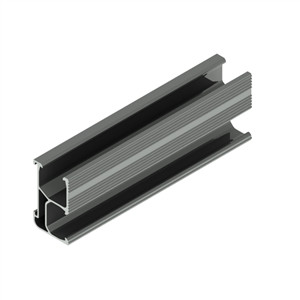

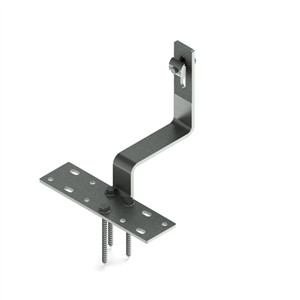

| LE-R-H001 | LE-RR-H47 | LE-RR-RS37 |
 |
 |
|
|

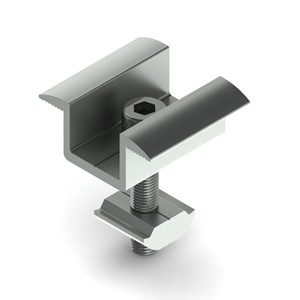

LE-R-MC35-01 |

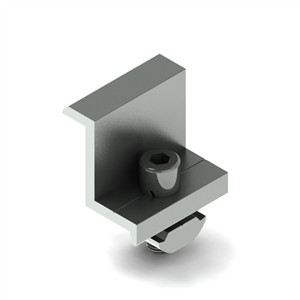

LE-R-EC35-04 |
Installation Guide:
 |
 |
 |
|

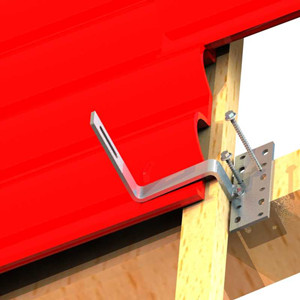

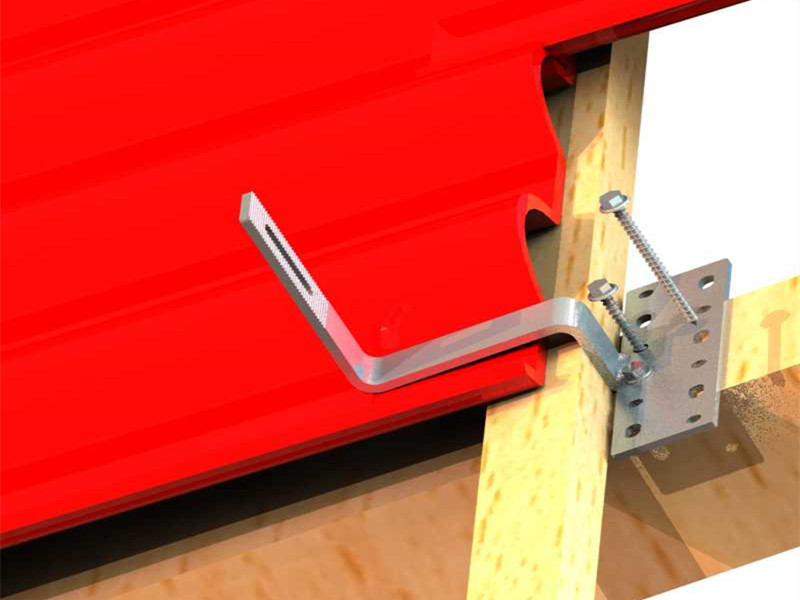

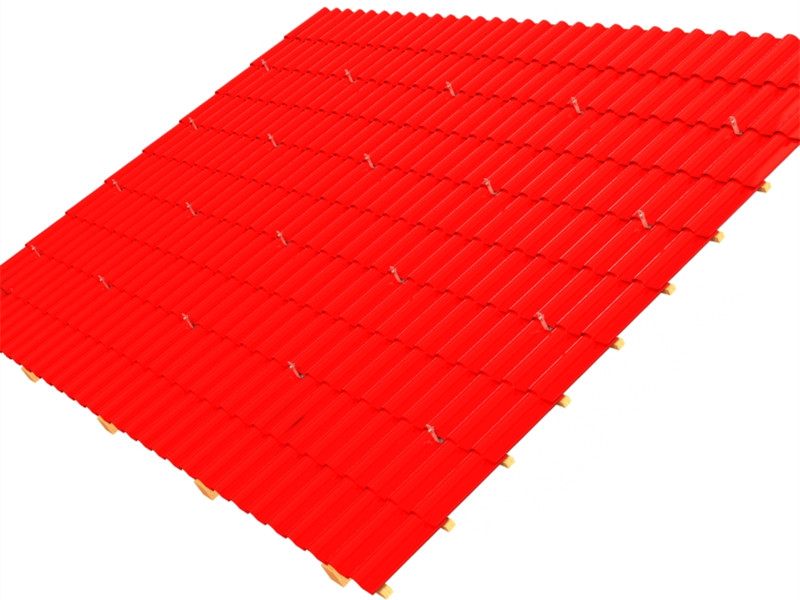

1. Remove tile and fix tile hook on roof beam. |

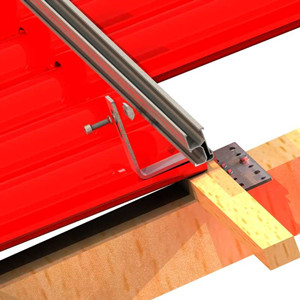

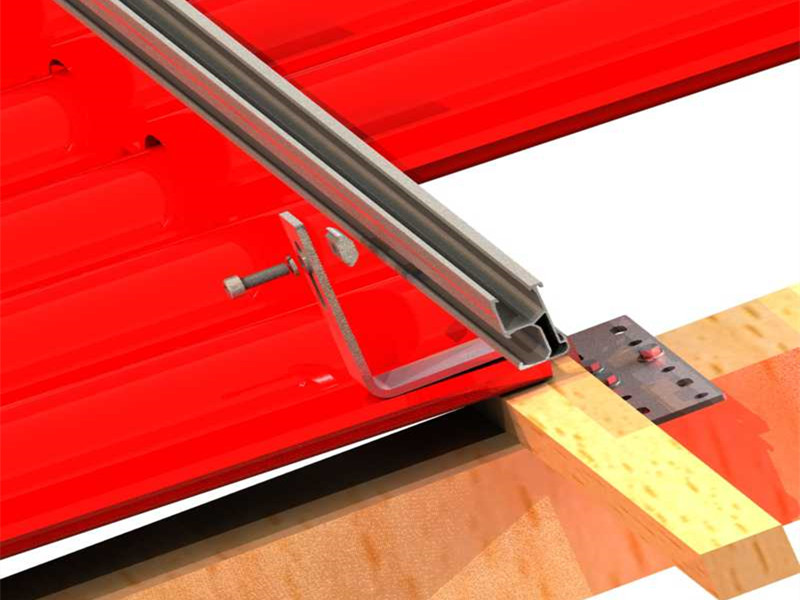

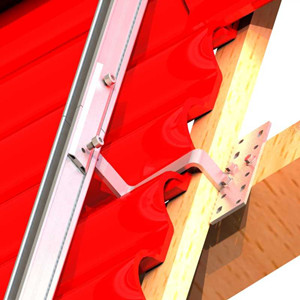

2. Fix solar rail on tile roof hook. |

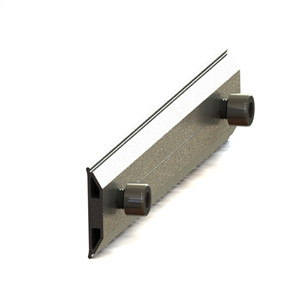

3. Use rail splice to connect two solar rail. |
 |
 |
 |

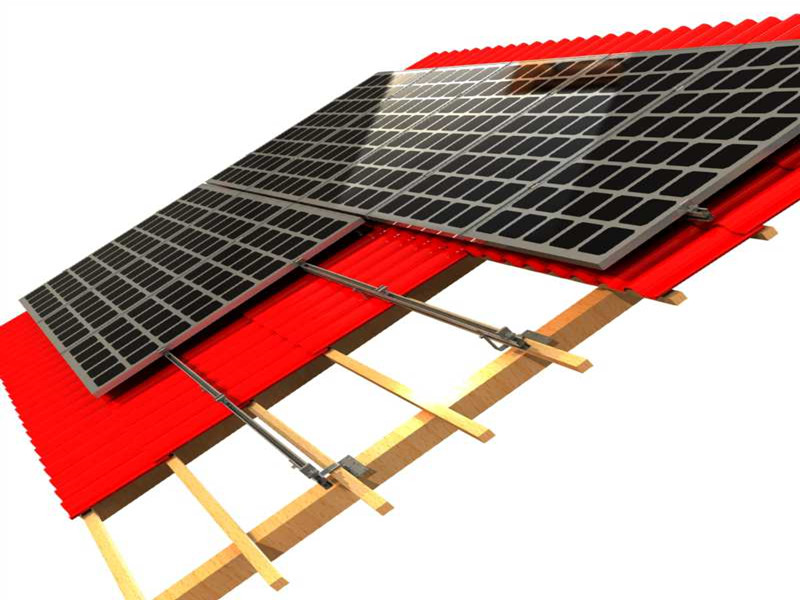

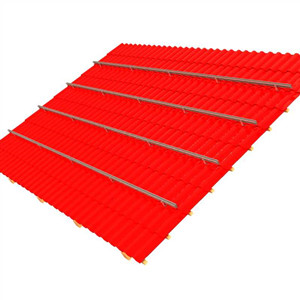

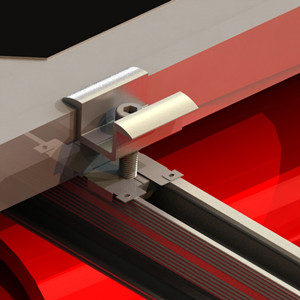

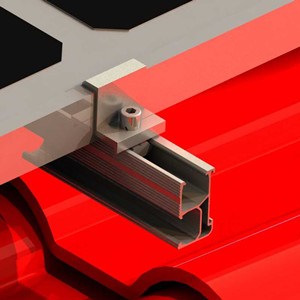

| 4. Install all the solar rail as per technical drawing. | 5. Install the end clamps to fix the panel. | 6. Install the mid clamps to fix the panel. |

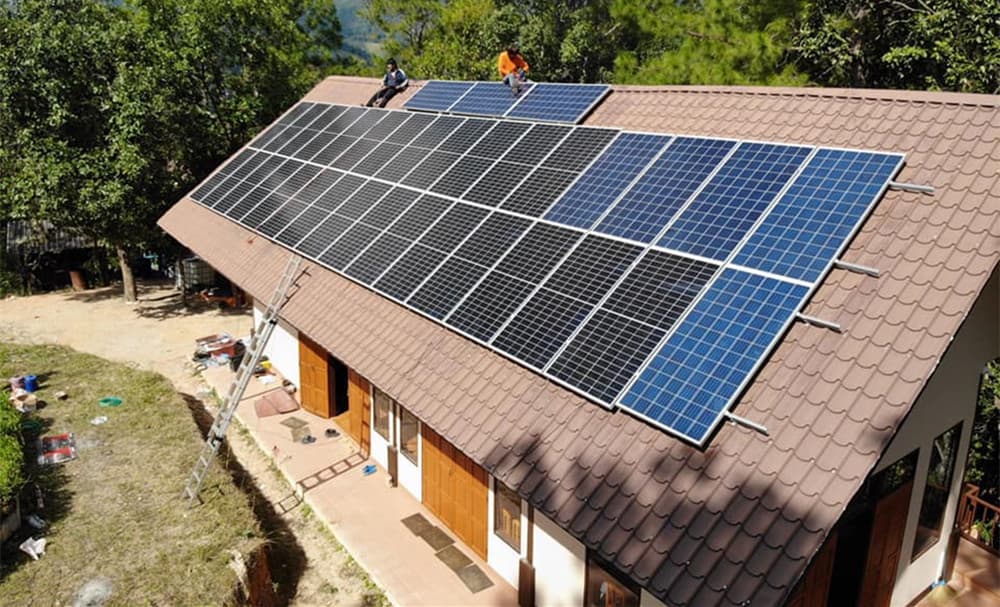

Our Projects:

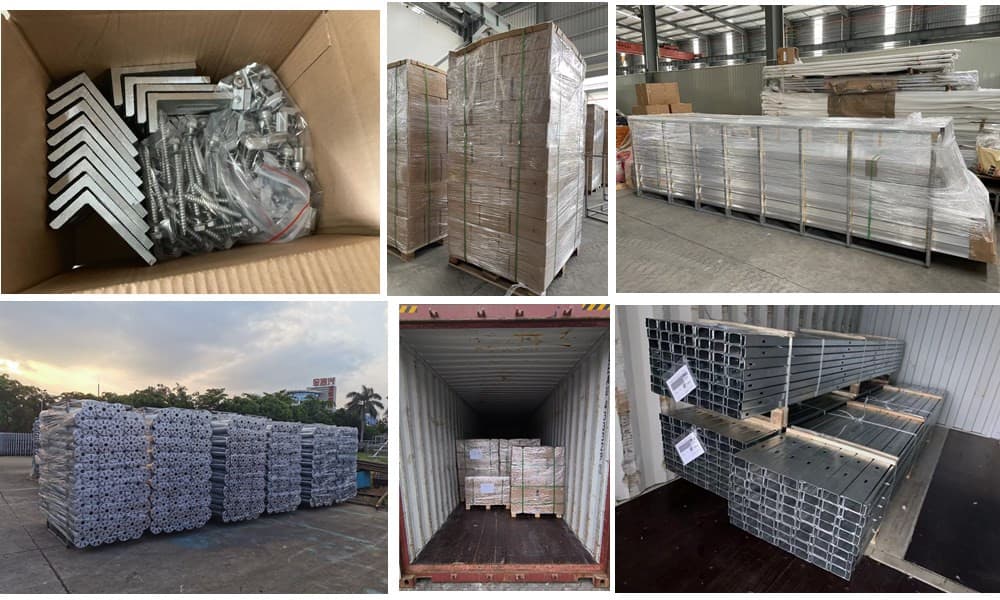

Packaging & Shipping
