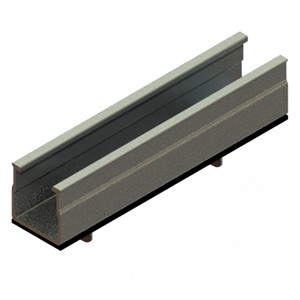

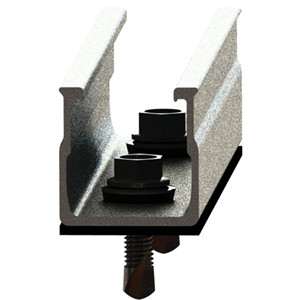

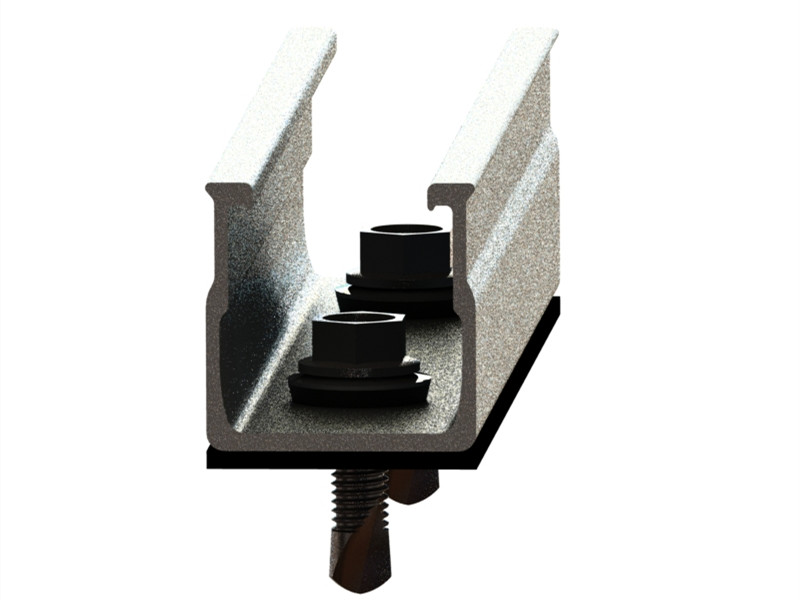

Material: anodized aluminum 6005-T5, with 2 pcs wood screws and EPDM rubber.
Application :
Tin roof solar mountingItem No :
LE-RR-MNMaterial :
Al6005-T5 & SUS304Size :
140mm, 400mm or customizedColor :
Silver or blackOrder(MOQ) :
1 pcsApplicable Module :
Framed or frameless moduleModule Orientation :
Portrait or landscapeProduct Description:
Link Solar Energy Railless Roof Solar Racking is designed for trapezoid metal roofing sheet. It can be fixed on roof directly without long aluminum rail, the installation is easy and convenient. It is a very economic solution for metal roof mounting.
Product Parameters:
| Brand | Link Solar Energy |
| Material | Al6005-T5, SUS304 & Rubber |
| Surface Coating | Anodized |
| Samples | Free samples |
| Max. Wind Speed |
60m/s |
| Max. Snow Load |
1.4KN/m² |
| Warranty |
12 years |
| Service Life |
25 years |
| Installation site |
Metal/tin roof |
| Tilt angle |
The same as the roof |
| Shipping port | Xiamen, China |
| Payment | TT/LC |
Feature:
1. Simple structure, easy installation, save time and cost.
2. Corrosion resistant aluminum and stainless steel components
3. Customized available, 140mm, 400mm or customized length
4. Designed for residential and commercial applications
Product Details:
 |
 |
 |
Installation:
 |
 |
 |
|

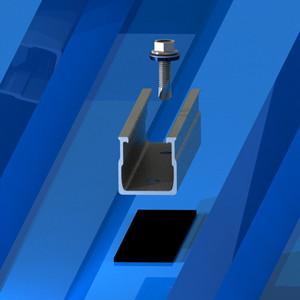

1. Place the rubber pad and mini rail in the marked place on the crown of metal roof. |
2. Place the rubber pad and mini rail in the marked place on the crown of metal roof. |

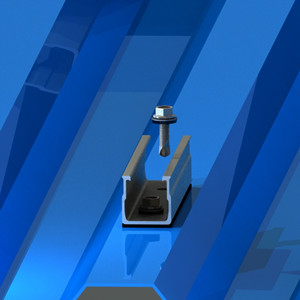

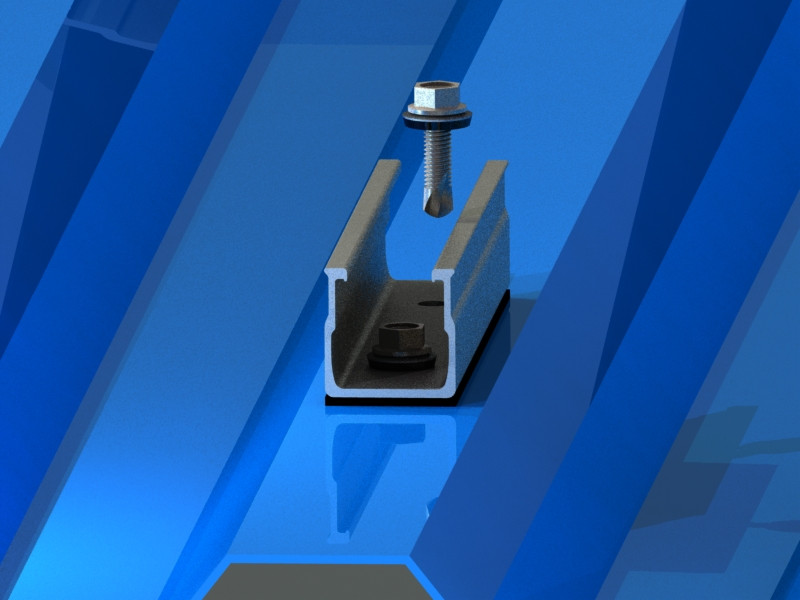

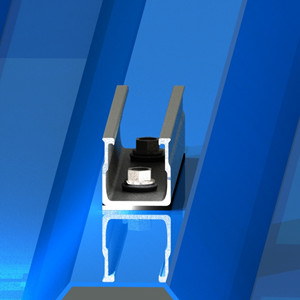

3. Fix the tapping screw well with the machine. |
 |
 |
 |
|

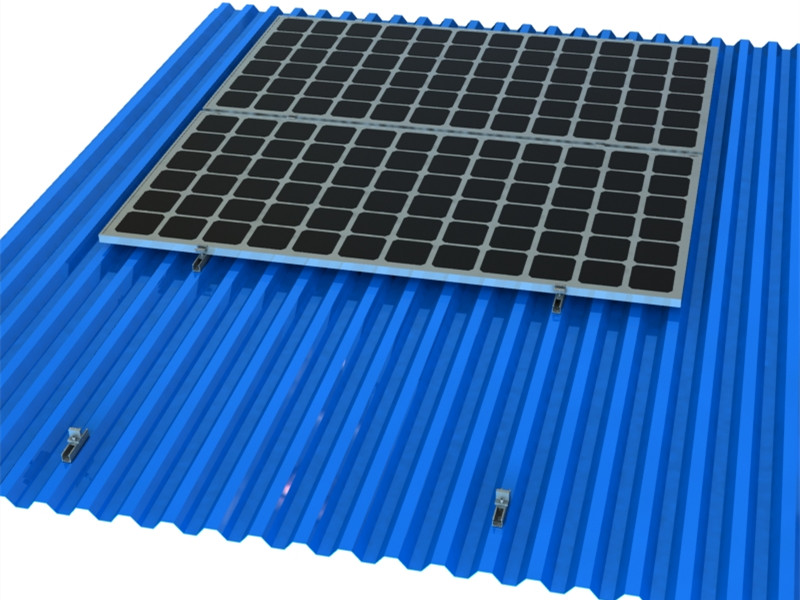

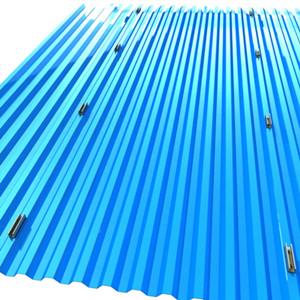

4. Install all mini rails on metal roof. |

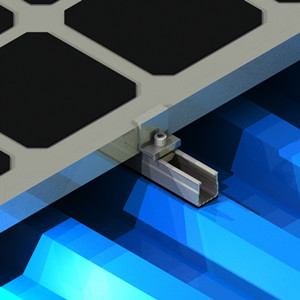

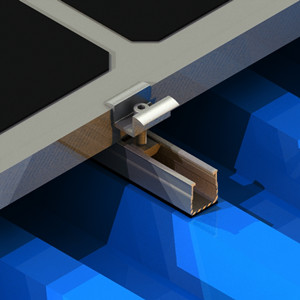

5. Install the end clamps to fix the panel. |
6. Install the mid clamps to fix the panel. |
Our Projects:

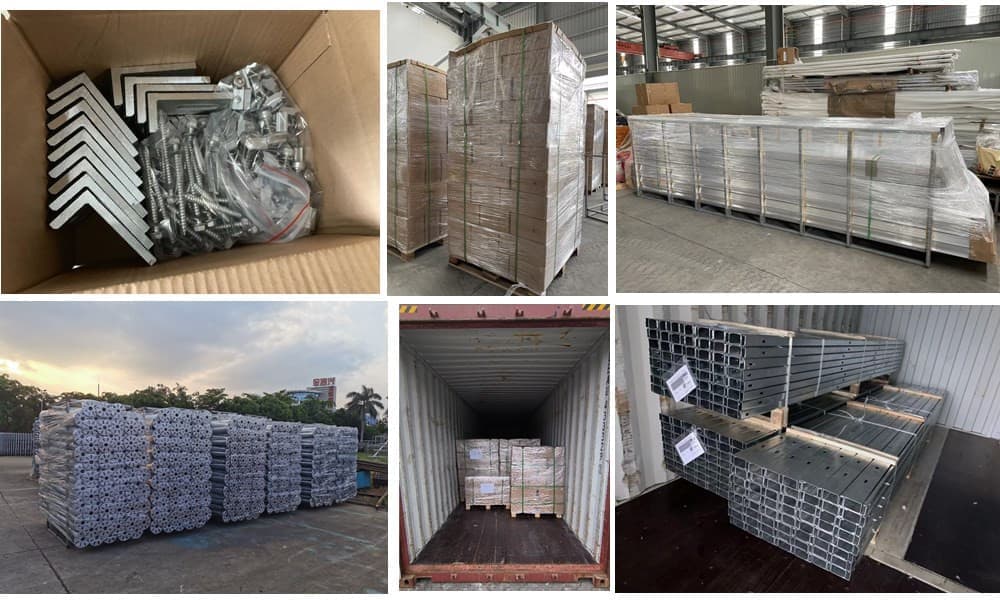

Packing & Shipping:
Aluminum solar rail is made of high strength anodized aluminum. The use of aluminum rails has become more and more popular in the solar industry due to their lightweight nature, durability and easy installation.
Read More
Solar mid clamp applied for framed solar modules from 25-50mm. This clamp is made of high quality anodized aluminum, fasteners are stainless steel 304, with a high corrosion-resistant.
Read More
Aluminum solar end clamp is applied for 25-50mm framed solar modules. These clamps are made of high quality anodized aluminum, and fasteners are stainless steel 304, with high corrosion-resistant.
Read More
Solar tile roof hooks are made by high-quality stainless steel 304, fixed, single adjustable and double adjustable are all available.
Read More
Solar mounting brackets L feet is applied to trapezoid, corrugated, and other tin roofs. L feet is equipped with wooden screw connection options to achieve maximum versatility and can be combined with all common solar rails.
Read More
Material: anodized aluminum 6005-T5, with 2 pcs wood screws and EPDM rubber.
Read More

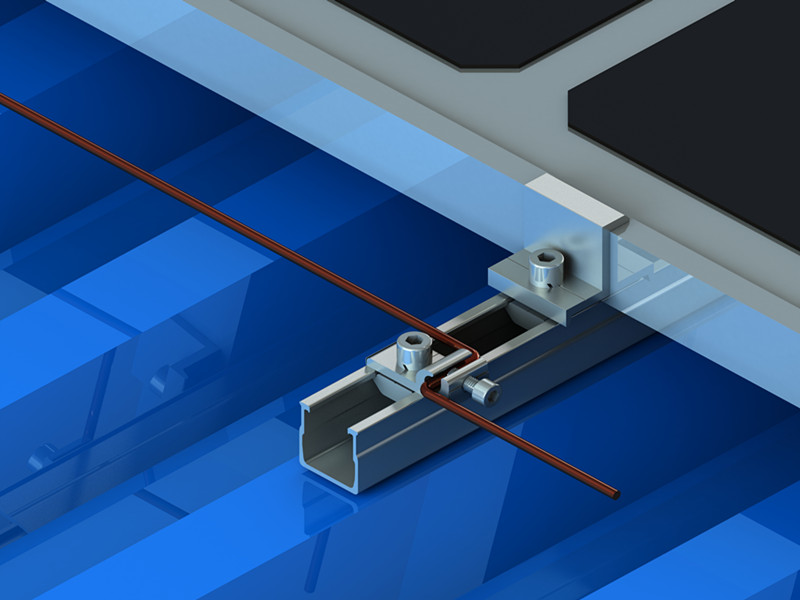

Solar system grounding lug is to prevent shock or fire hazards so as to make solar system grounding easily. One row rails use a grounding lug.
